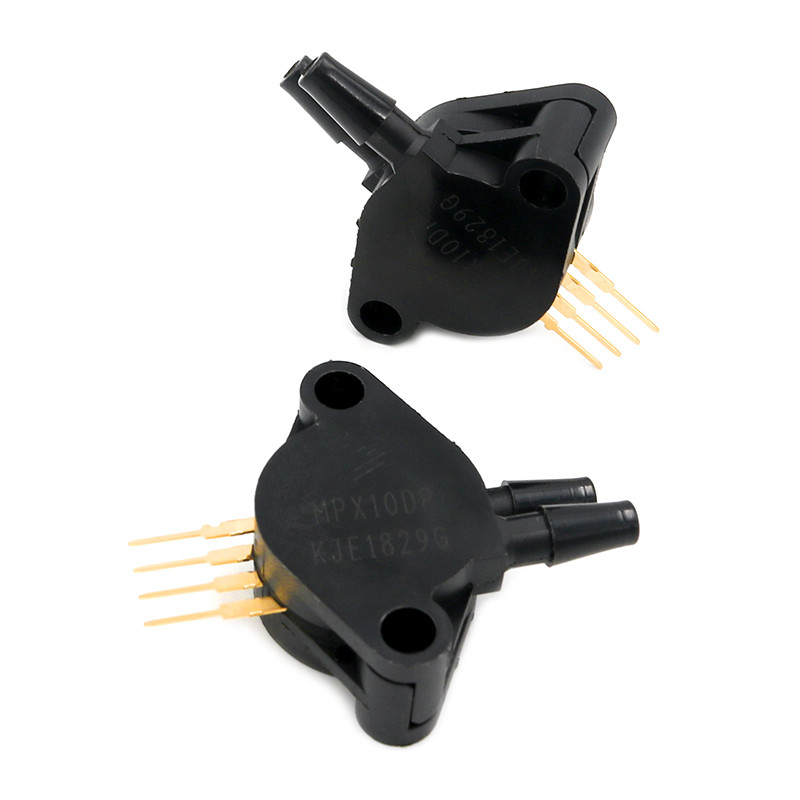

MPX10DP 0-10 Kpa (0-1.45PSi) Ion Injection X Type Silicon Pressure Sensors Are Used In Medical Devices

  • 1
  • 2

Model Number : MPX10DP

Place of Origin : United States

MOQ : 5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1501/pcs/pre

Delivery Time : 3-5work days

Packaging Details : In tray

Pressure Hysteresis (0 to 10 kPa) : ±0.1 — %VFSS

Temperature Hysteresis : ±0.5 — %VFSS

Temperature Coefficient of Full Scale Span : TCVFSS –0.22 — –0.16 %VFSS/°C

Temperature Coefficient of Offset : TCVOFF — ±15 — μV/°C

Temperature Coefficient of Resistance : TCR 0.21 — 0.27 %ZIN/°C

Input Impedance : ZIN 400 — 550 Ω

Output Impedance : ZOUT 750 — 1250 Ω

Contact Now

Product Description:

MPX10DP 0-10 Kpa (0-1.45PSi) Ion Injection X Type Silicon Pressure Sensors Are Used In Medical Devices

Features:

The MPX10 series silicon piezoresistive pressure sensors provide a very

accurate and linear voltage output, directly proportional to the applied

pressure. These standard, low cost, uncompensated sensors permit

manufacturers to design and add their own external temperature

compensation and signal conditioning networks. Compensation techniques

are simplified because of the predictability of Freescale's single element

strain gauge design.

• Low Cost

• Patented Silicon Shear Stress Strain Gauge Design

• Ratiometric to Supply Voltage

• Differential and Gauge Options

• Durable Epoxy Unibody Element or Thermoplastic (PPS) Surface Mount

Package

Specifications:

Differential Pressure Range(1) POP 0 — 10 kPa
Supply Voltage(2) VS — 3.0 6.0 VDC
Supply Current IO — 6.0 — mAdc
Full Scale Span(3) VFSS 20 35 50 mV
Offset(4) VOFF 0 20 35 mV
Sensitivity — 3.5 — mV/kPa
Linearity –1.0 — 1.0 %VFSS

MPX10DP 0-10 Kpa (0-1.45PSi) Ion Injection X Type Silicon Pressure Sensors Are Used In Medical Devices
