2.5±0.1V Working Voltage MC106B Catalytic Flammable Gas Sensor for Measuring Range of 0～100%LEL

Model Number : MC106B

Place of Origin : CN

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Model : MC106B

Sensor Type : Catalytic Type

Standard Encapsulation : Plastic

Working voltage(V) : 2.5±0.1

Measuring range(%LEL) : 0～100

Response Time (90%) : Response Time (90%)

Contact Now

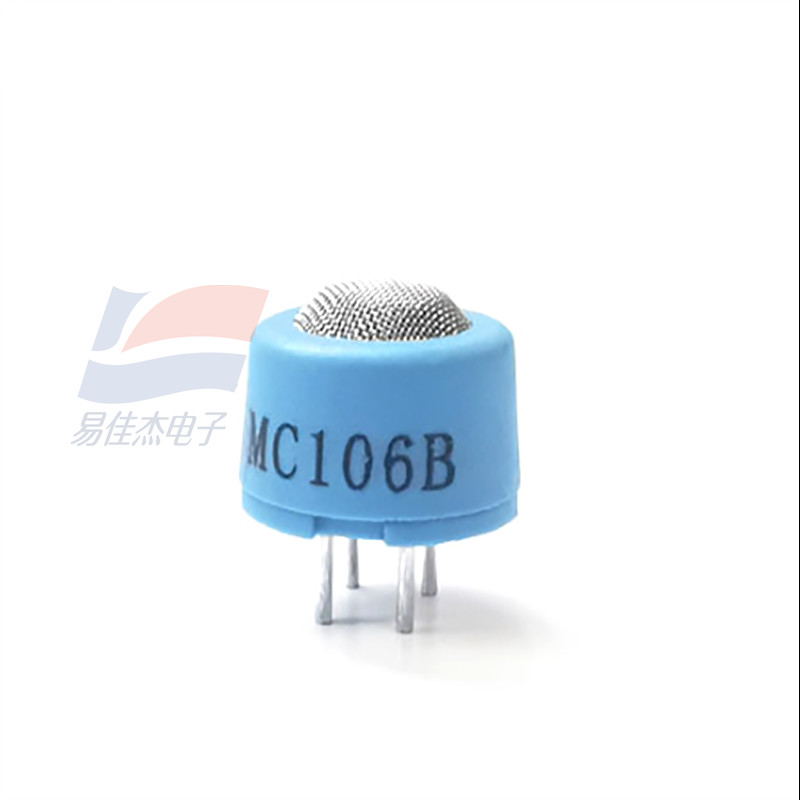

MC106B Catalytic Flammable Gas Sensor

Product :

MC106B adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.

Features :

Bridge output voltage in linear

Fast response

Good repeatability and selectivity

Resist H2S poisoning & organosilicone.

Main Applications:

It is widely used in non-industrial occasions to detect the concentration of natural gas, LPG, coal gas and alkanes. It is also used in combustible gas leakage alarm system, combustible gas detector and gas concentration meter and so on.

Model MC106B
Sensor type Catalytic type
Standard encapsulation Plastic
Working voltage (V) 2.5±0.1
Working current (mA) 150±10
Sensitivity (mV) 1% CH4 15～45
1% C3H8 25～65
Linearity ≤5%
Measuring range (%LEL) 0～100
Response time (90%) ≤10s
Recovery time (90%) ≤30s
Working environment -40～+70℃ <95%RH
Storage environment -25～+70℃ <95%RH
Life span 5 years
