TGS2611-C00 and TGS2611-E00 Combustible Gas Sensor for Natural Gas Detection Range 000 ppm Heater Current 56 ± 5mA Suitable

  • 1
  • 2
  • 3

Brand Name : Figaro

Model Number : TGS2611-C00 TGS2611-E00

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Target gases : Methane, Natural Gas

range : 500 ~ 10,000 ppm

sensitivity (change ratio of Rs) : 0.60 ± 0.06

Circuit Voltage : 5.0±0.2V DC/AC

tandard package : tandard package

Heater current : 56 ± 5mA

Contact Now

TGS2611-C00 TGS2611-E00 Combustible gas sensor Natural Gas sensor

Features:

Low power consumption

High sensitivity to methane

Long life and low cost

Uses simple electrical circuit

Applications:

Domestic gas alarms

Portable gas detectors

Gas leak detector for gas appliances

Description:

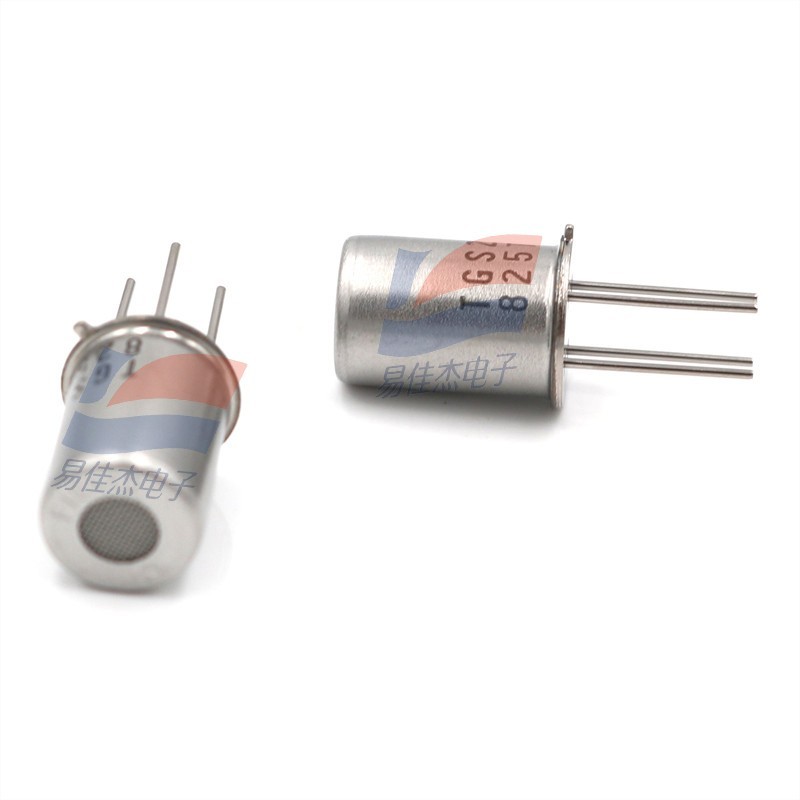

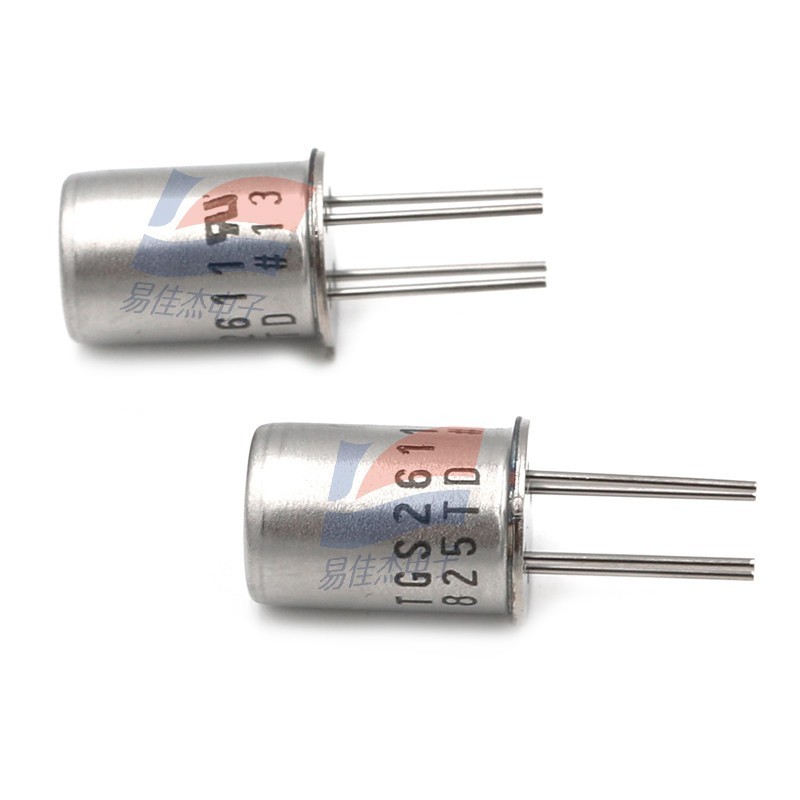

TGS2611 is a semiconductor type gas sensor which combines very high sensitivity to methane gas with low power consumption and long life. Due to miniaturization of its sensing chip, TGS2611 requires a heater current of only 56mA and the device is housed in a standard TO-5 package.

Methane sensor TGS2611-C00 TGS2611-E00
- for the detection of Methane

Heater resistance 59Ω at room temp. (typical)
Heater current 56 ± 5mA
Heater power consumption 280±25mW
Conditioning period before test 7 days
Standard package TO-5 metal can
Sensing element type D1

TGS2611-C00 and TGS2611-E00 Combustible Gas Sensor for Natural Gas Detection Range 000 ppm Heater Current 56 ± 5mA SuitableTGS2611-C00 and TGS2611-E00 Combustible Gas Sensor for Natural Gas Detection Range 000 ppm Heater Current 56 ± 5mA SuitableTGS2611-C00 and TGS2611-E00 Combustible Gas Sensor for Natural Gas Detection Range 000 ppm Heater Current 56 ± 5mA Suitable
