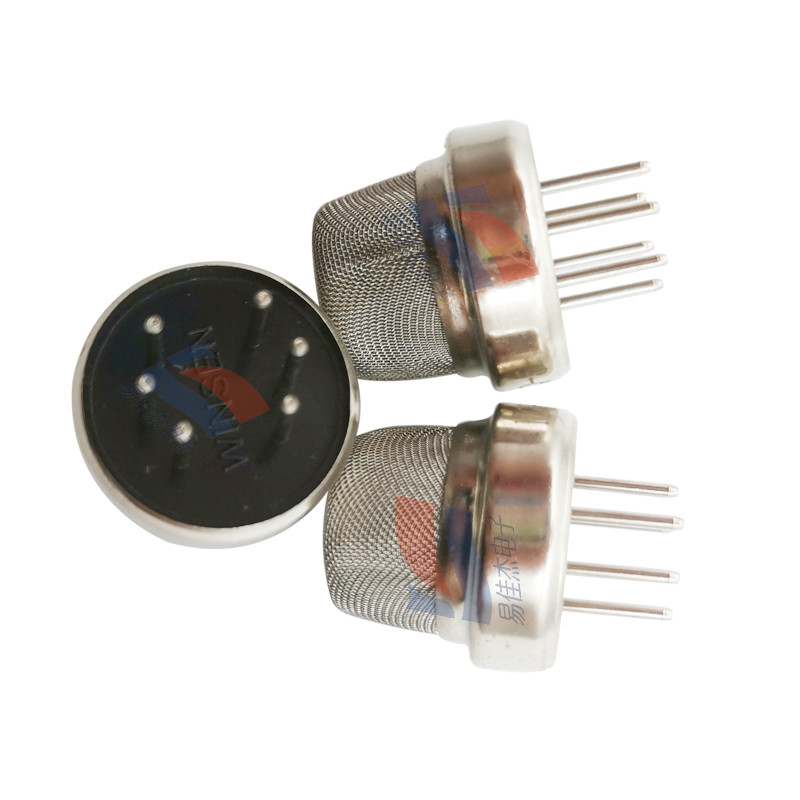

MQ-5 Flammable Gas Sensor for Detecting LPG in Standard Bakelite Encapsulation

Model Number : MQ-5

Place of Origin : CN

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Model : MQ-5

Sensor Type : Semiconductor

Standard Encapsulation : Bakelite, Metal cap

Target Gas : LPG, CH4

Detection range : 300～10000ppm（CH4,C3H8）

Loop Voltage : 5.0V±0.1V DC

Contact Now

MQ-5 Flammable Gas Sensor

Profile :

Sensitive material of MQ-5 gas sensor is SnO2,which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.

MQ-5gas sensor has high sensitivity to butane, propane, methane and can detect methane and propane at the same time. It also can detect kinds of flammable gases, especially LPG(Propane). It is a kind of low–cost sensor for many applications.

Features :

It has good sensitivity to flammable gas (Especially Propane) in wide range, and has advantages such as long lifespan, low cost and simple drive circuit &etc.

Main Applications :

It is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.

Model			MQ-5
Sensor Type			Semiconductor
Standard Encapsulation			Bakelite, Metal cap
Target Gas			LPG, CH4
Detection range			300～10000ppm(CH4,C3H8)
Standard Circuit Conditions	Loop Voltage	Vc	5.0V±0.1V DC
	Heater Voltage	VH	5.0V±0.1V AC or DC
	Load resistance	RL	Adjustable
Sensor character under standard test conditions	Heater Resistance	RH	30Ω±3Ω (RoomTemp.)
	Heater consumption	PH	≤950mW
	Sensitivity	S	Rs(in air)/Rs( in 2000ppm C3H8)≥5
	Output Voltage	Vs	2.5V～4.0V (in 2000ppm C3H8)
	Concentration Slope	α	≤0.6(R3000ppm/R1000ppm C3H8)
Standard test conditions	Tem. Humidity		20℃±2℃；55%±5%RH
	Standard test circuit		Vc:5.0V±0.1V VH:5.0V±0.1V
	Preheat time		Not less than 48 hours
	O2content		21%(No less than 18%) O2 concentration effects initial value, sensitivity and repeatability.
