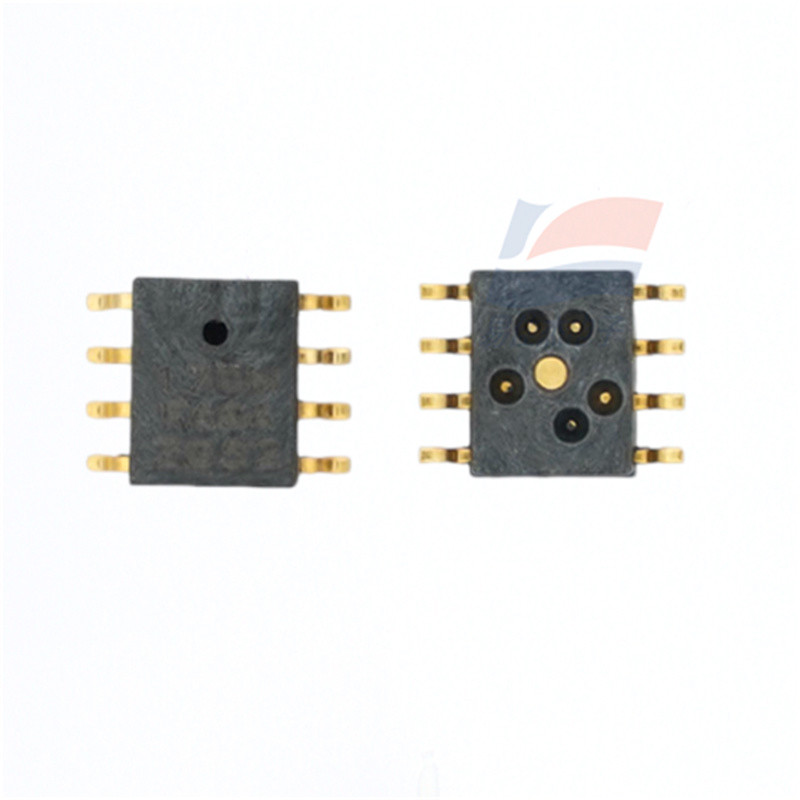

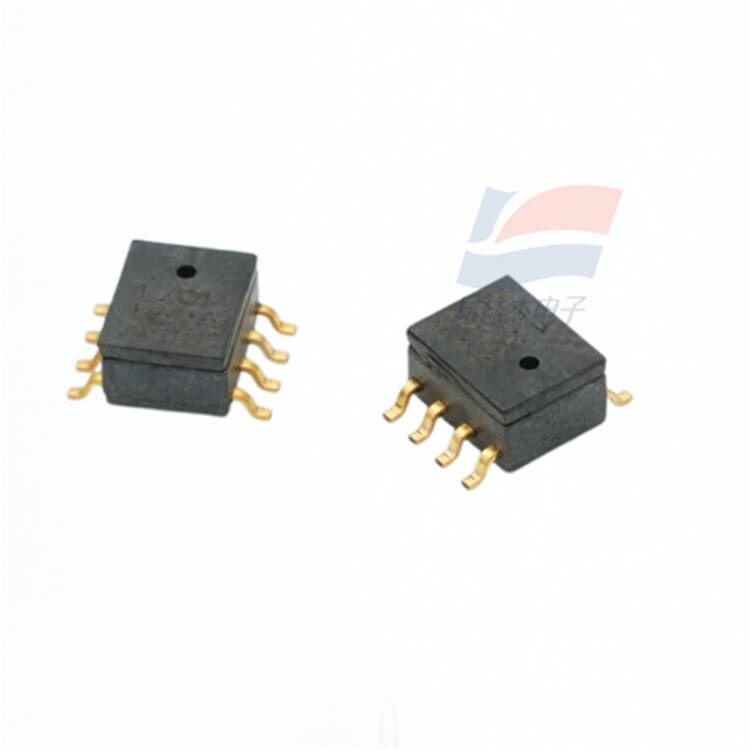

YJJ XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap Water

  • 1
  • 2

Brand Name : YJJ

Model Number : XGZP170

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 5-8 days

Packaging Details : Tube installation

Power supply : ≤15V DC or ≤3.0mA DC

Input impedance : 4kΩ to 6kΩ

Output impedance : 4kΩ to 6kΩ

Insulation resistance : 100MΩ,100VDC

Allowable overload : 1.5 times full scale

Measuring medium : Air

Contact Now

Product Description:

XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap Water

Features:

Measurement range: -100 kpa to 0kPa... 1000kPa

MEMS technology

Gauge pressure form

SOP or DIP packaging form

Suitable for non-corrosive gases

Operating temperature range :-30℃ to +100℃

The back pressure chamber of the chip is under pressure

The direction of the pins can be selected

Electrical performance

Power supply :≤15VDC or ≤3.0mA DC

Input impedance :4kQ to 6kQ

Output impedance :4k2 to 6kQ

Insulation resistance :100MQ,100VDC

Allowable overload: Allowable overload :3 times full scale (pressure range ≤40kPa)

2 times full scale (40kPa< pressure range ≤200 kpa)

1.5 times full scale (200kPa< pressure range ≤1000kPa)

Pressure-sensitive chip: Silicon material

Lead wire: Gold wire

Encapsulation shell: PPS material

Pin: Copper plated with silver

Net weight: Approximately 0.4 grams

"Electrical performance"

Power supply: ≤15V DC or ≤3.0mA DC

Input impedance: 4kΩ to 6kΩ

Output impedance: 4kΩ to 6kΩ

Insulation resistance: 100MΩ,100VDC

Permissible overload: 3 times the maximum static pressure (maximum static pressure ≤40kPa)

1.5 times the maximum static pressure (40kPa< maximum static pressure ≤350kPa)

conditions"

Measuring medium: Air

Medium temperature: (25±1) ℃

Ambient temperature: (25±1) ℃

Vibration: 0.1g(1m/s ²)Max

Humidity: (50%±10%) RH

Power supply: (5±0.005) V DC

It is only used as the benchmark test condition for the following basic parameters

Specifications:

Measurement range -100 kpa to 0kPa... 1000kPa
Packaging form SMD/DIP
Operating temperature 0℃ to 40℃
Operating temperature range -30℃ to +100℃

YJJ XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap WaterYJJ XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap Water
