AWM3300V AWM3303V Airflow Sensors 5 VDC Output Voltage Trim Point Flow Range 1000 sccm for Industrial Applications

Brand Name : Honeywell

Model Number : AWM3300V AWM3303V

Place of Origin : USA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Flow Range (Full Scale) : +1000 sccm

Output Voltage @ Trim Point : 5 VDC @ 1000 sccm

Null Voltage : 1.00 ±0.10 VDC

Null Voltage Shift, Typ. +25° to 25°C, 25° to +85°C : ±25 mV

Output Voltage Shift, Max. +25° to 25°C +25° to +85°C : -5% Reading +5% Reading

Repeatability & Hysteresis, Max. : ±1% Reading

Contact Now

AWM3300V Airflow Sensors Microbridge Mass Airflow/Amplified:

Notes:
1. Initial warm-up time for signal conditioned circuitry is 1 minute max.

2. Output Voltage is ratiometric to supply voltage.

3. Temperature shifts when sensing differential pressure correlates to the density change of the gas over temperature. (See Application Note 1.)

4. Maximum allowable rate of flow change to prevent damage: 5 SLPM/1 sec.

Temperature Range Operating: 25° to +85°C ( 13° to +185°F); Storage: 40° to +90°C ( 40° to +194°F)
Termination 2,54 mm (.100) centers, 0,635 mm (0.025) square
Weight (grams) 10.8
Shock Rating 100 g peak (5 drops, 6 axes

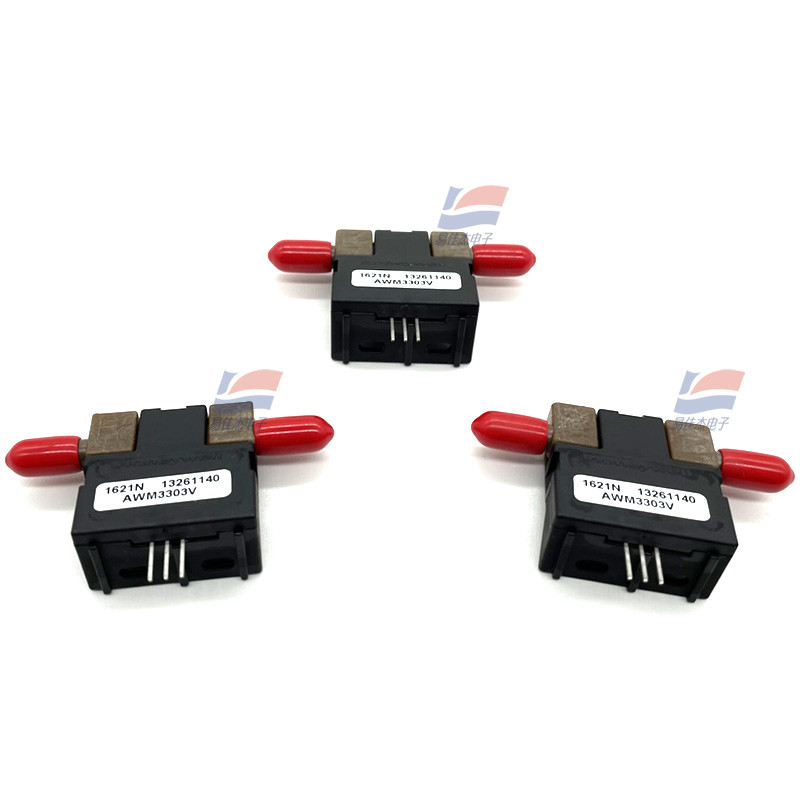

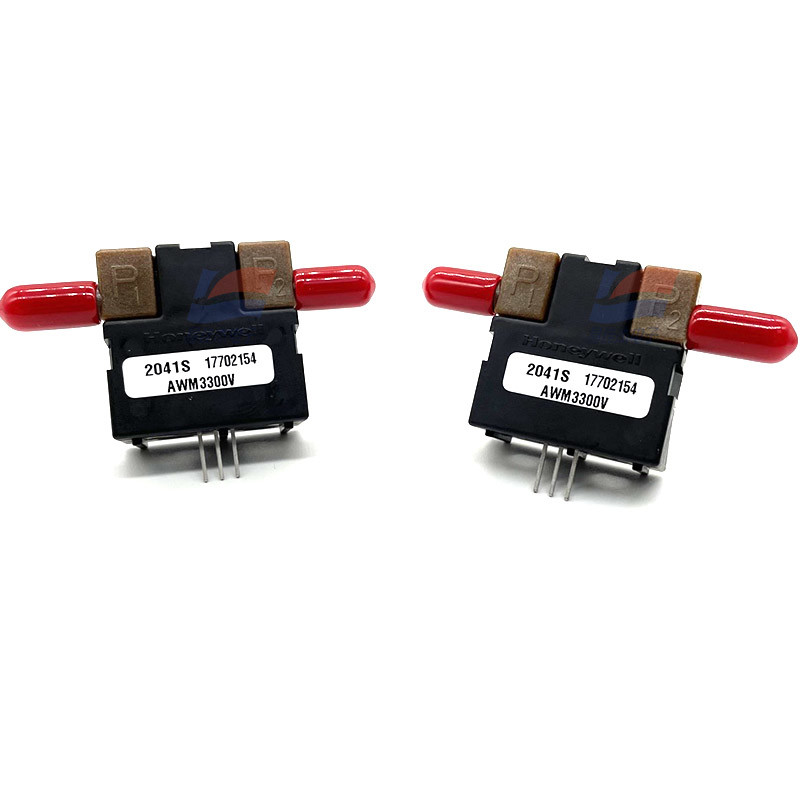

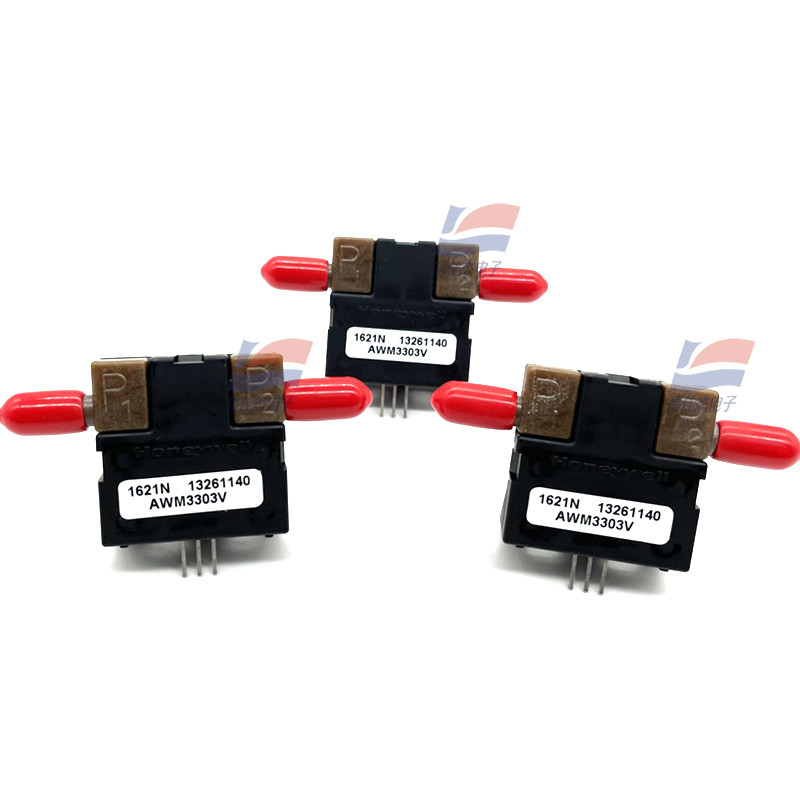

AWM3300V AWM3303V Airflow Sensors 5 VDC Output Voltage Trim Point Flow Range 1000 sccm for Industrial ApplicationsAWM3300V AWM3303V Airflow Sensors 5 VDC Output Voltage Trim Point Flow Range 1000 sccm for Industrial ApplicationsAWM3300V AWM3303V Airflow Sensors 5 VDC Output Voltage Trim Point Flow Range 1000 sccm for Industrial ApplicationsAWM3300V AWM3303V Airflow Sensors 5 VDC Output Voltage Trim Point Flow Range 1000 sccm for Industrial Applications
