Brand Name : YJJ
Model Number : 7CO-50 051-1300-000
Place of Origin : CHINA
MOQ : 1
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 500
Delivery Time : 5 to 8 working days
Packaging Details : Canned
Range : 0-50 ppm
Maximum load : 100 ppm
Sensitivity (20℃) : 0.4 ± 0.1 μA/ppm
Response time (T90) : ≤ 30 seconds
Baseline (20℃) : < ±1.4 μA
Resolution : 0.5 ppm
Product Description:
7CO-50 051-1300-000 Electrochemical Carbon Monoxide Sensor Is Used For Gas Concentration Measurement
Features:
Product Description
This product is used to measure the concentration of carbon monoxide gas and can replace the standard seven-series carbon monoxide electrochemical sensor with pins.
Performance parameters
The range is 0 to 50 ppm
Maximum load: 100 ppm
Sensitivity (20℃) : 0.4 ± 0.1 μA/ppm
The response time (T90) is ≤ 30 seconds
Baseline (20℃) < ±0.4 μA
Baseline drift (-20℃ to 50℃) < 1 ppm
Resolution: 0.1 ppm
Linearity Linear
Bias voltage: 0 mV
Working environment
Temperature range: -20℃ to 50℃
The pressure range is 1 ± 0.1 standard atmosphere
Humidity range: 15% to 90%RH (no condensation)
Lifespan
Long-term stability < 2% signal value per month
Storage temperature: 10℃ to 30℃
Service life: 2 years (in the air)
Storage time: 6 months (in dedicated packaging boxes)
The warranty period is 24 months
Intrinsically safe data
The maximum current is less than 0.2 mA when there is 100ppm of carbon monoxide
The maximum open-circuit voltage is 1.3V
The maximum short-circuit current is less than 1.0 A
Physical properties
Shell material: ABS
Weight: 8 grams
RoHS compliance
Specifications:
Storage temperature | 10℃ to 30℃ |
Service life | 2 years (in the air) |
Storage time | 6 months (in dedicated packaging boxes) |
maximum open-circuit voltage | 1.3V |
![]() |

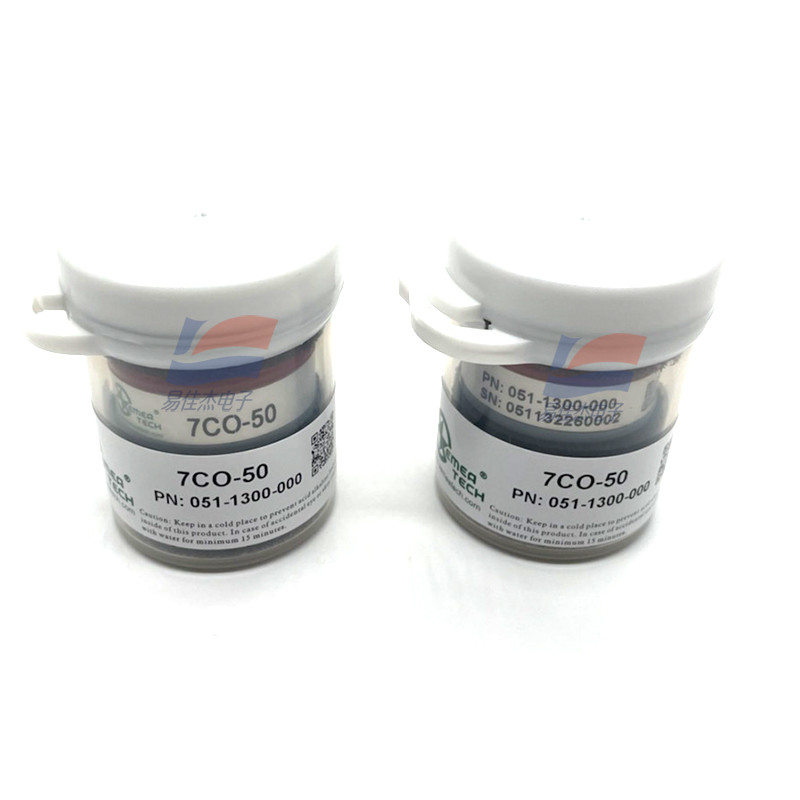

YJJ 7CO-50 051-1300-000 Electrochemical Carbon Monoxide Sensor Is Used For Gas Concentration Measurement Images |
