8414776 Ventilator Accessory Disposable Exhalation Valve

ShenzhenYijiajie Electronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

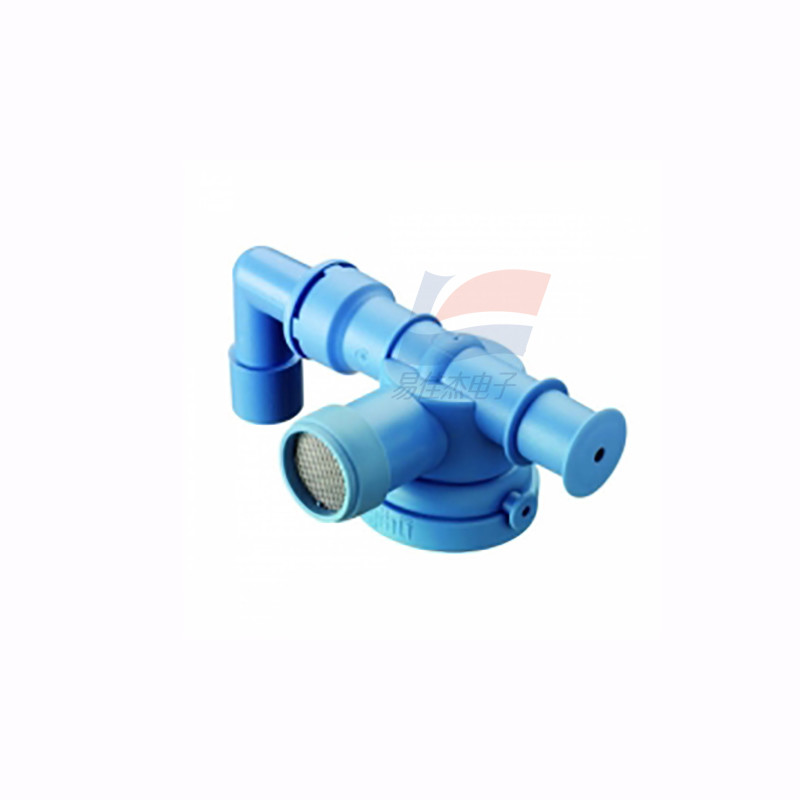

8414776 Ventilator Accessory Disposable Exhalation Valve

Model Number : 8414776

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Price : Negotiable

Model : 8414776

Product Type : Disposable Exhalation Valve (Ventilator Accessory)

Weight : 45 g per valve (approx.)

Dead Space : ≤15 mL (minimizes rebreathing risk)

Contact Now

8414776 Repetitive Exhalation Valve Of The Ventilator

Basic Information:

  • Model: 8414776
  • Product Type: Reusable Inhalation Valve / Inspiratory Valve (Ventilator Accessory)
  • Application: Compatible with Drager Evita series ventilators (e.g., Evita 4, Evita XL, etc.)
  • Purpose: Controls the flow of inhaled gas, located at the ventilator's inhalation port to regulate air delivery to the patient.
  • Regulatory Approval: CE marked; complies with international medical device standards (e.g., ISO 13485).

Working Principle:

  • Operates based on pressure differential sensing
  • Opens when the ventilator delivers inspiratory gas (positive pressure), allowing gas to flow to the patient.
  • Closes during exhalation to prevent backflow of exhaled gas into the ventilator circuit.

Material & Design:

  • Material: Medical-grade plastic (biocompatible, corrosion-resistant), often with components like:
  • Polycarbonate housing for durability.
  • Silicone seals for airtightness and flexibility.
  • Features:
  • Reusable design with sterilization compatibility.
  • Low dead space to minimize gas retention.
  • Easy disassembly for cleaning and maintenance.

Compatibility:

  • Specifically designed for Drager Evita ventilators; not compatible with other brands' systems.

Clinical Features:

  1. Airflow Control: Ensures precise delivery of tidal volume and inspiratory pressure.
  2. Hygiene & Safety: Biocompatible materials reduce the risk of patient infection.
  3. Ease of Use: Quick installation and removal for routine maintenance.

Warning & Maintenance:

  • For medical use only: Must be operated by trained healthcare professionals.
  • Sterilization Note: Follow Drager’s official guidelines to avoid material degradation (e.g., do not use harsh chemicals).
  • Disposal: Discard immediately if physical damage (e.g., cracks, deformations) is observed.

Technical Parameters:

Parameter

Details

Dimensions (Approx.) Length: 12 cm, Diameter: 4 cm (model-specific; refer to product label)
Weight 60 g (approx.)
Sterilization Methods Autoclavable (134°C, 3 bar, 10 min); Ethylene oxide (EO) sterilizable.
Reuse Cycle Recommended for up to 20 uses or 90 days (follow clinical guidelines).
Operating Temperature 5°C–40°C (storage: -20°C–50°C)
Humidity Resistance ≤80% relative humidity (non-condensing)

8414776 Ventilator Accessory Disposable Exhalation Valve
