DS4-SO2-100 Solid-state Polymer Electrochemical Sulfur Dioxide Sensor For Environmental Air Quality Monitoring

Brand Name : EC

Model Number : DS4-SO2-100

Place of Origin : Germany

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 5-8 work days

Packaging Details : Standard packaging

Detectable Gas : Sulfur dioxide (SO₂)

Sensitivity : At 20℃: 0.37±0.07μA/ppm

Baseline Drift : Within -20℃ to 50℃: <0.5ppm

Operating Voltage : 3.3V-12V DC

Contact Now

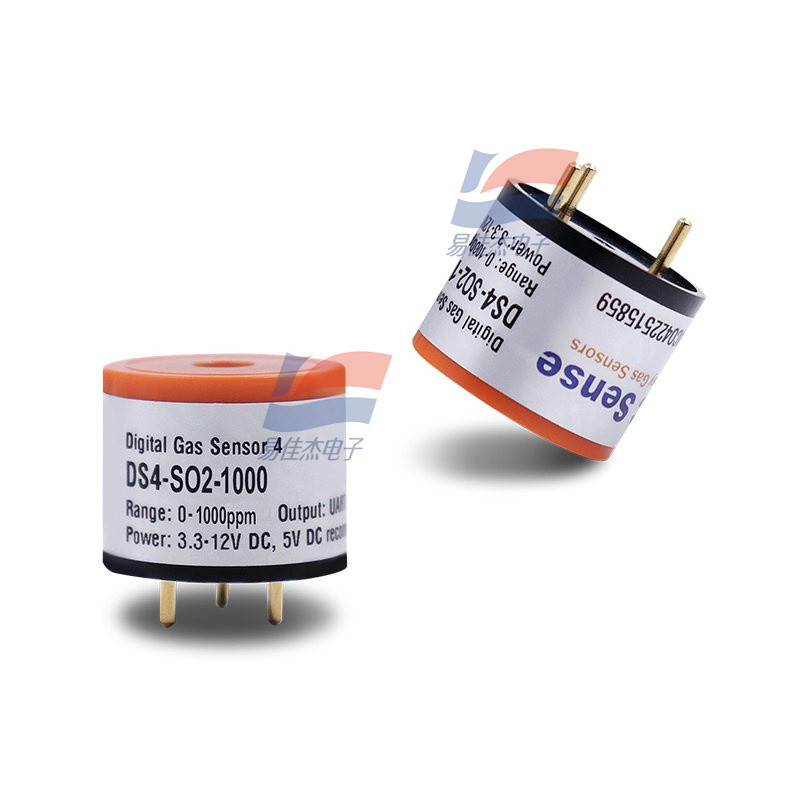

DS4-SO2-100 Solid-state Polymer Electrochemical Sulfur Dioxide Sensor

Basic Information:

  • Brand: EC Sense.
  • Sensor Type: Solid-state polymer electrochemical sensor.
  • Detectable Gas: Sulfur dioxide (SO₂).

Working Principle:

Adopting a three-electrode design, it utilizes solid-state polymer electrochemical technology. The sensor mainly consists of a working electrode, counter electrode, reference electrode, and solid-state electrolyte. SO₂ gas reaches the working electrode of the sensor through diffusion holes, where an electrochemical oxidation or reduction reaction occurs on the porous micro-surface of the electrode. Protons generated by the reaction migrate to the counter electrode through the polymer electrolyte, producing a current signal proportional to the concentration of the measured gas.

Performance Characteristics:

  • Wide Voltage Range: Operates at 3.3V to 12V DC, with 5V DC recommended.
  • Wide Temperature Range: Works at -40°C to +55°C without the need for temperature compensation.
  • Rapid Response: Quickly detects changes in gas concentration and achieves stable measurement results in a short time for real-time monitoring.
  • High Precision and Linearity: Features excellent linearity and high measurement accuracy, enabling accurate measurement of SO₂ gas at different concentrations.
  • Long-term Stability: Exhibits minimal zero-point drift and stable signals during long-term use. The anti-poisoning design ensures reliable performance in complex environments.
  • Low Power Consumption: Supports a low-power sleep mode, with customizable sleep/wake functions, suitable for IoT and battery-powered applications.
  • Compact and Lightweight: Adopts the standard 4-series industrial size, a cylindrical design of 20x16.6mm, facilitating integration into various new or existing products.
  • Simple Output: Supports simple UART digital output (3.3V half-duplex single-wire mode), making data collection convenient and easy to integrate with microcontrollers or IoT systems.
  • Safe and Reliable: Has intrinsic safety certifications (Ex ia IIC T6 Ga), complies with RoHS standards, and is safe and environmentally friendly.

Technical Parameters:

  • Range: Commonly 0-100ppm, with other ranges available.
  • Resolution: Up to 0.5ppm or higher; in the 0-5ppm range, the resolution can reach 0.001ppm.
  • Sensitivity: At 20°C, the sensitivity is 0.37±0.07μA/ppm.
  • Baseline Drift: Within -20°C to 50°C, the baseline drift is less than 0.5ppm.
  • Cross-sensitivity: Has certain cross-sensitivities to gases such as hydrogen sulfide, carbon monoxide, nitric oxide, nitrogen dioxide, hydrogen, and ammonia, but the values are small.

Application Fields:

  • Environmental Protection: Used for monitoring ambient air quality, detecting the concentration of SO₂ in the atmosphere, providing data support for environmental protection departments, and assisting in evaluating environmental pollution status and formulating environmental protection policies.
  • Industrial Fields: In industries such as metallurgy, power, petrochemicals, and mining, it is used to monitor waste gas emissions during industrial production and the concentration of SO₂ in the production environment to ensure production safety and environmental compliance.
  • Flue Gas Desulfurization Systems: Used for the automatic control of flue gas desulfurization processes. By real-time monitoring of SO₂ concentration, it optimizes reaction conditions, improves desulfurization efficiency, and reduces sulfur dioxide emissions.
  • Fire Rescue and Emergency Detection: Detects the concentration of SO₂ in the air at fire scenes or other emergency scenarios, providing safety guidance for rescue personnel and ensuring the smooth progress of rescue work.

Detectable Gas Sulfur dioxide (SO₂)
Sensor Type Solid-state polymer electrochemical sensor
Range Standard range: 0-100ppm (other ranges are optional, such as 0-5ppm, etc.)
Resolution - Standard range: 0.5ppm
- 0-5ppm range: 0.001ppm
Sensitivity At 20℃: 0.37±0.07μA/ppm
Baseline Drift Within -20℃ to 50℃: <0.5ppm
Operating Voltage 3.3V-12V DC (5V DC recommended)
Operating Temperature -40℃ to +55℃ (no temperature compensation required)
Response Time Fast response, capable of real-time monitoring of gas concentration changes

DS4-SO2-100 Solid-state Polymer Electrochemical Sulfur Dioxide Sensor For Environmental Air Quality Monitoring
