DS4-CO Intelligent Carbon Monoxide Gas Sensor For Industrial Commercial Civil Medical Fields

Brand Name : EC

Model Number : DS4-CO

Place of Origin : Germany

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5 work days

Packaging Details : Standard packaging

Accuracy : ±5% of full scale (F.S)

Repeatability : < ±2%

Power-up Stabilization Time : < 60s

Operating Voltage : 3.3-12V DC

Operating Current : 0.65mA @ 5V DC

Peak Current : 1mA @ 5V DC

Contact Now

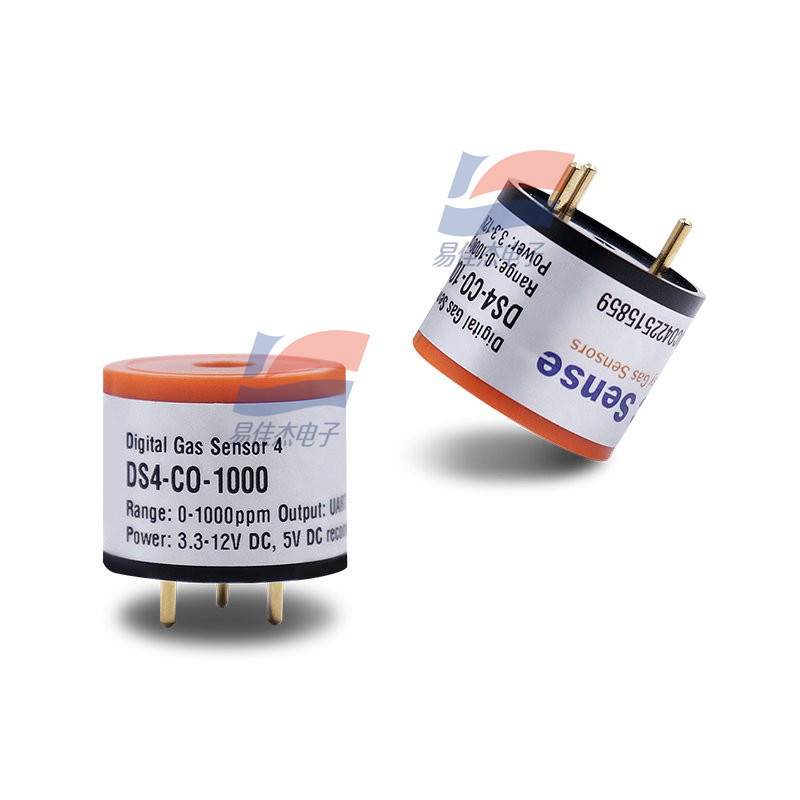

DS4-CO Intelligent Carbon Monoxide Gas Sensor

Overview:

The DS4-CO intelligent carbon monoxide gas sensor employs reliable printed solid polymer electrochemical sensing technology, an industrial-grade solution developed by German EC Sense. With a compact design, high-performance microprocessor, high-precision ADC, and intelligent algorithms, it integrates seamlessly into IoT and monitoring systems, suitable for industrial, commercial, civil, and medical applications.

Product Features:

  1. Standard Industrial Dimensions:
    • 20×16.6mm cylindrical housing (standard 4-series industrial size), ideal for fixed gas detectors and portable meters. Reduces housing design costs and supports quick product iteration.
    • Standard three-pin configuration: VCC (power +), GND (power -), IO (data I/O).
  2. Factory Pre-calibration:
    • Each sensor undergoes gas calibration at the factory, with data stored in internal memory for direct use (no need for on-site gas calibration).
    • Calibration uses diffusion-type gas and simulated environmental climate testing, ensuring accuracy in diffusion-based measurements (pump-suction measurements may require secondary calibration).
  3. No Preheating Required:
    • Intelligent hardware design keeps the sensor active during power-off, enabling immediate gas monitoring upon power-up. Eliminates long preheating delays in IoT or battery-powered applications.
  4. Customizable Encryption Code:
    • Users can set custom codes for instrument identification. The instrument auto-detects sensor types and displays errors for mismatched codes.
  5. Low-power Sleep Mode:
    • Customizable sleep/wake functions optimize power consumption for battery-powered or IoT applications.
  6. Self-Identification:
    • Outputs identity information (gas type, range, etc.) for flexible self-diagnostic design.
  7. UART Digital Output:
    • 3.3V half-duplex UART interface directly outputs gas concentration values, simplifying secondary development.
  8. Easy Maintenance:
    • Hot-swappable design with open calibration protocols supports offline re-calibration and factory reset, enhancing safety and convenience.

Sleep Mode Current 0.35mA @ 5V DC
Power Consumption ≤5mW @ 5V DC
Long-term Sensitivity Drift < 1%/month
Expected Lifespan >3 years (in air)
Warranty 12 months from shipment date
Operating Temperature -40°C to +55°C
Operating Humidity 15-95% RH (non-condensing)
Pressure Range Atmospheric pressure ±10%
Storage Temperature 0°C to 20°C
Housing Material ABS
Weight 4.56g
