Brand Name : SUSA
Model Number : 4HCl-LS
Place of Origin : UK
MOQ : 1
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 3000/pcs/month
Delivery Time : 3-5workingdays
Packaging Details : Standard Package
Detection range : 0-50 ppm
Maximum load : 100 ppm
Bottom current : 0-1 μA
Zero drift : (-20 to 50°C) 0-3 ppm
4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes
4HCL-LS refers to a type of electrochemical gas sensor specifically designed to detect hydrogen chloride (HCl) gas. It is a three-electrode sensor, meaning it uses three electrodes to measure the concentration of HCl in the surrounding atmosphere. This sensor is suitable for industrial and commercial applications where monitoring HCl levels is crucial.
Basic performance
Sensitivity | 300±80 nA/ppm (positive signal) |
Response time | < 70 s |
Repeatability | <±2% of signal/month |
Linearity Linear to | 100 ppm |
Electrical
Resolution | 0.1 ppm |
Bias voltage | +200 mV |
Recommended resistance | 5-30 Ω |
Physical properties
Weight | < 5 g |
Orientation requirements | None |
Work Environment
Intended Use | Suitable for most life safety detectors |
Operating temperature range | -40 to 50°C |
Operating pressure range | 800-1200 mbar |
Operating humidity range | 15%-90% RH (non-condensing) |
Warranty life
Recommended storage environment | In a sealed container at 0-20°C |
Expected service life | In air 24 months |
Storage period | Original packaging 6 months |
Warranty period | 12 months |
![]() |

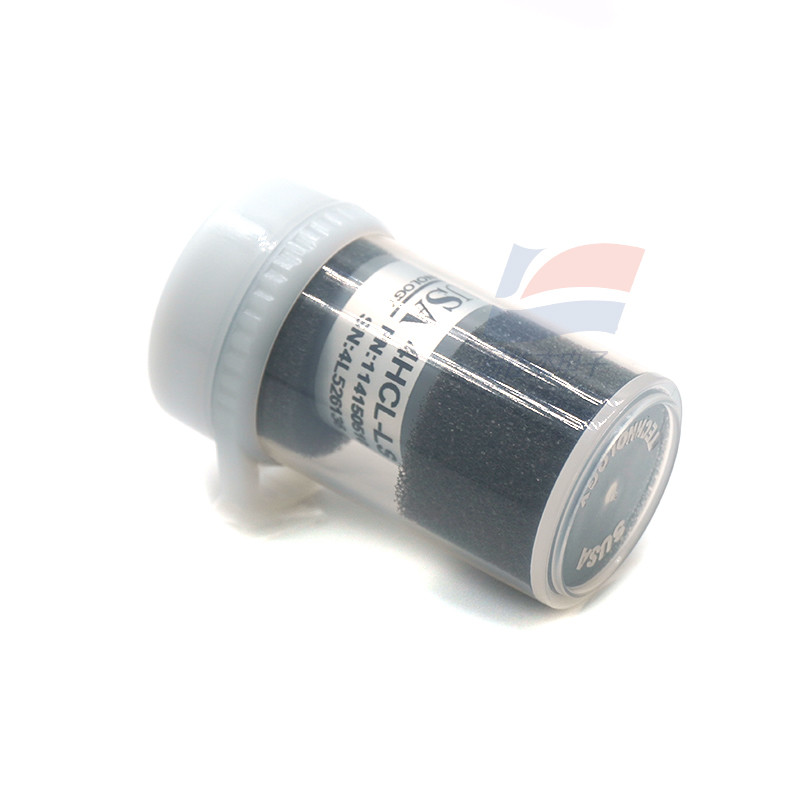

4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes Images |
