Product Description:

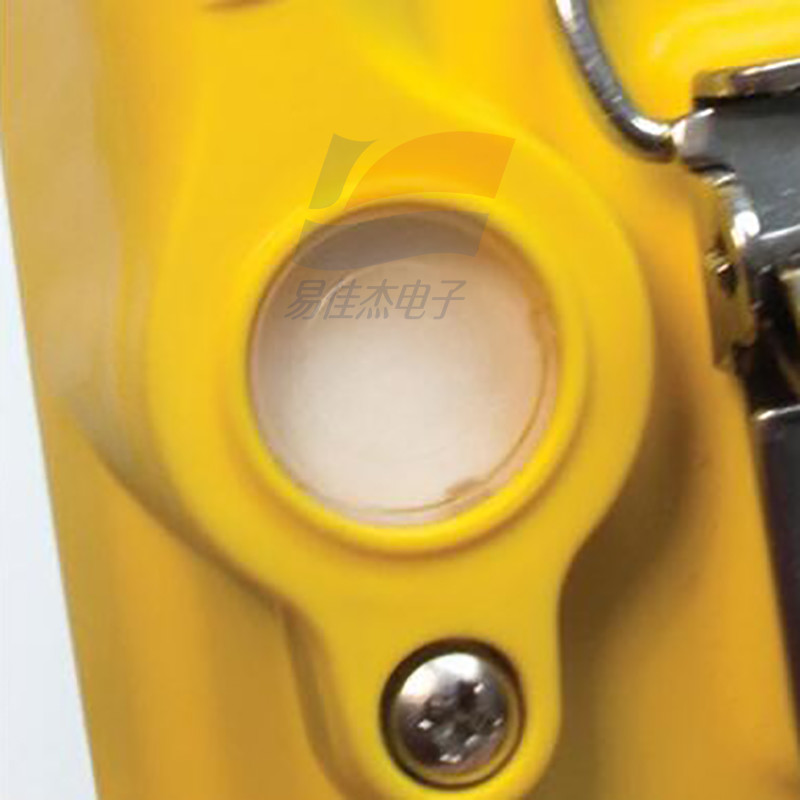

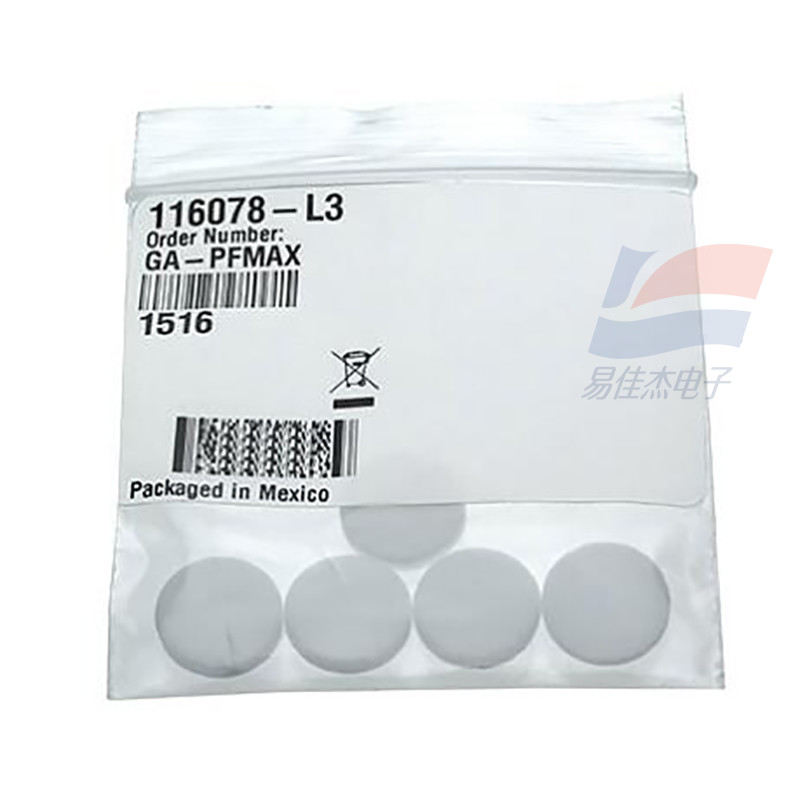

XT-RF-H5 Filter Is Used In The BW GasAlert MAX XTII Pump Suction Four-in-one Gas Monitor
Features:
XT-RF-H5 filter is used in the BW GasAlert MAX XTII pump suction four-in-one gas monitor
The GasAlertMax XT II is capable of reliably monitoring up to four hazardous gases.
At the same time, it combines an intuitive single-button interface operation with a robust and durable electric pump
Combined, it can perform intelligent and remote sampling, which is highly suitable for confined Spaces
In the meantime. GasAlertMax XT II and MicroDock II are automatically tested and calibrated
The system is fully compatible.
Standard features of BW products:
The LCD screen continuously and in real time shows the gas concentration
The design is small and lightweight, and comfortable to wear
IP67 waterproof rating
Simple automatic calibration program; Compatible with the BW MicroDockII automatic test and calibration station
When starting up, it conducts a full-function self-check on sensors, battery status, line integrity, and audible, visual and vibration alarms
A bright wide-angle visual alarm light column
It has a built-in shock-absorbing outer cover
Data recording/Event recording
Other functions of GasAlertMax XT II:
The integrated sampling pump adopts reliable diaphragm technology
The industry's best blockage detection with semiconductor pressure sensors
Multi-language support, including English, French, German, Spanish and Portuguese
Fleet Manager II enables you to manage the detector conveniently
GasAlertMax XT II specification
Dimensions: 5.1 x 2.8 x 2.0 inches / 13.1 x 7.0 x 5.2 centimeters
Weight: 11.5 ounces / 328 grams
Temperature: -4 to 122 ° C / -20 to 50 ° C
Humidity: 10% to -100% relative humidity (non-condensing)
Alarm: - Visual, vibration, sound (95dB)
Low limit, high limit, STEL, TWA, OL (beyond limit), insufficient power, pump
Test: The audio-visual alarm is activated when the detector starts up. The alarm is issued continuously when the sensor malfunctions, the battery power is insufficient, or the pump and circuit malfunction
The standard service life of the battery: 13 hours at 32 ° F / 0 ° C
At -4 ° C / -20 ° C, for 8 hours
It can be fully charged in 6 hours
Pump suction: Samples can be extracted up to 75 feet / 23 meters away
User Options: Trust Buzzer Sound Safety (sensor) Lock Lock Alarm Safety Display Mode Calibration Infrared Lock
When the position is selected, the forced adhesion test expires, the forced impact test expires, and the forced calibration expires
Sensor configuration detector identification Low limit alarm confirmation language options (five types)
Set the custom startup message prompt interval and data recording interval
Grade: EMI/RFI: Complies with EMC Specification 2004/108/EC
Invasive protection: IP66/67
Certification and Licensing: CSA Class I, Div.1, Gr.A, B, C, D
IECEx: Ga Ex ia IIC T4
ATEX: CE II 1 G Ga Ex ia IIC T4
Br Ex ia IIC T4
Guarantee: 2-year warranty (including all sensors)
Sensor specification
Gas measurement range resolution
H2S 0-200 ppm 1 ppm
CO 0-1000 ppm 1 ppm
O2 0-30.0% 0.1%
Flammable gas: 0-100% LEL, 1%
0-5.0% v/v 0.1%
Users can adjust the alarm set points of all sensors. During the instrument startup process, Settings
The points will be displayed automatically.
Specifications:
| Flammable gas | 0-100% LEL, 1% |
| Guarantee | 2-year warranty (including all sensors) |
| Sensitivity | 0.3±0.1μA/ppm |
| Baseline (20 ℃) | < ± 0.2 mA |
