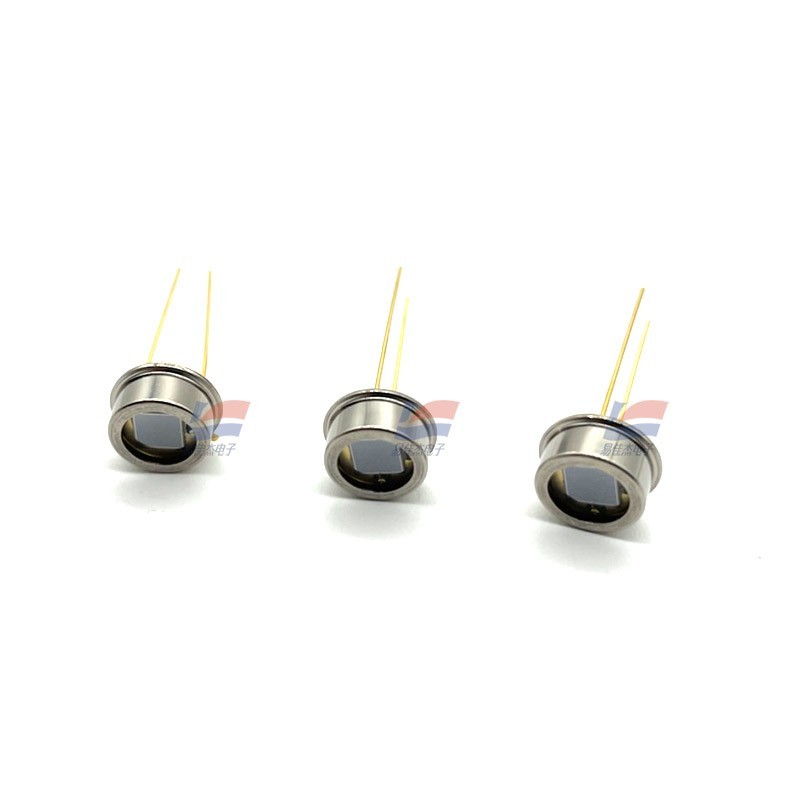

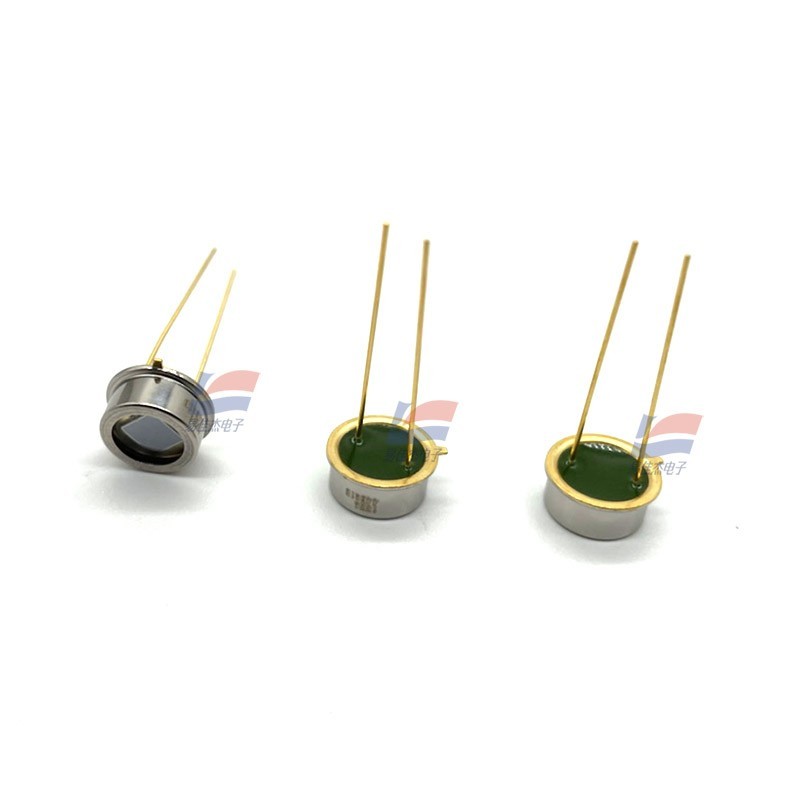

Silicon Pin Photodiode S1336-44BQ S1336-44BK High Sensitivity In The Ultraviolet Band

  • 1
  • 2

Model Number : S1336-44BQ S1336-44BK

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Light-receiving side : 3.6 × 3.6 mm

encapsulation : metal

Package Category : TO-5

refrigeration : Non-cooled

Reverse voltage (max) : 5 V

Spectral response range : 190 to 1100 nm

Contact Now

Silicon Pin photodiodes S1336-44BQ

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Maximum Sensitivity Wavelength (Typical) 960 nm
Light sensitivity (typical) 0.5 A/W
Dark current (max) 50 pA
Rise Time (Typical) 0.5 μs
Junction Capacitance (typical) 150 pF
Noise equivalent power (typical) 1.0×10-14 W/Hz1/2

Silicon Pin Photodiode S1336-44BQ S1336-44BK High Sensitivity In The Ultraviolet Band

Silicon Pin photodiodes S1336-44BK

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Light-receiving side 3.6 × 3.6 mm
encapsulation metal
Package Category TO-5
refrigeration Non-cooled
Reverse voltage (max) 5 V
Spectral response range 320 to 1100 nm
