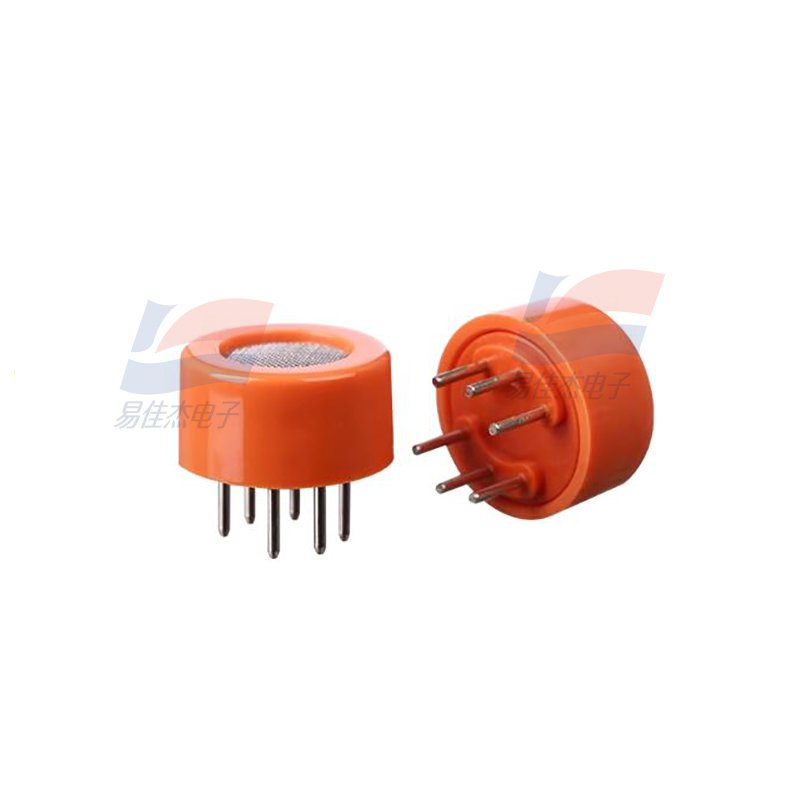

YJJ MQ-3B Semiconductor Alcohol Sensor For Portable Alcohol Gas Detector

Brand Name : YJJ

Model Number : MQ-3B

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3 days

Packaging Details : Disk mounting

Loop voltage Vc : ≤24V DC

Heating voltage VH : 5.0V±0.1V ACorDC

load resistance RL : adjustable

Heating resistance RH : 29±3Ω (room temperature)

Contact Now

Product Description:

MQ-3B Semiconductor Alcohol Sensor For Portable Alcohol Gas Detector

Features:

Gas-sensitive material used in the MQ-3B alcohol sensor is tin dioxide (SnO2), which has a low conductivity in clean air. When alcohol vapor exists in the environment of the alcohol sensor, the conductivity of the gas sensor increases with the increase of the concentration of alcohol gas in the air. A simple circuit can be used to convert the change in conductivity into an output signal corresponding to the concentration of that gas.

MQ-3B semiconductor alcohol sensor has high sensitivity to alcohol and can resist interference from gasoline, smoke and water vapor. This gas sensor can detect a variety of alcohol atmospheres and is a low-cost sensor suitable for a variety of applications.

Product advantage

Good sensitivity to alcohol gases

Long life, low cost

A simple drive circuit is enough

Main application

Alcohol gas alarm for vehicles

Portable alcohol gas detector

Specifications:

Product Type	Planar semiconductor gas sensor
Standard package	Plastic seal
Detection gas	alcohol vapor
Detection concentration	25-500ppm alcohol

YJJ MQ-3B Semiconductor Alcohol Sensor For Portable Alcohol Gas Detector

Product Tags:

Portable Alcohol Gas Detector

Semiconductor Alcohol Gas Detector

YJJ MQ-3B Semiconductor Alcohol Sensor For Portable Alcohol Gas Detector Images
