Model Number : MEu-2O2
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 3-5work days
Measurement Range : 0~25% VOL
MaxRange : 30% VOL
Sensitivity : 0.10±0.02mA(in the air)
Response time(T90) : ≤15S
Load resistance (recommended) : 100Ω
Repeatability : <2% output value
MEu-2O2 Oxygen Sensor Is A Fixed Potential Type Sensor Oxygen Undergoes A Reduction Reaction On The Working Electrode
Description :
MEu-2O2 oxygen sensor is a fixed potential type sensor. Oxygen undergoes a reduction reaction on the working electrode, and at the same time, a corresponding oxidation reaction occurs on the counter electrode, releasing charges to form a current. The current is proportional to the oxygen concentration and follows Faraday's law. The size can determine the level of oxygen concentration.
Features :
* Low power consumption, high precision, wide linear range, strong anti-interference ability, Excellent repeatability and stability
Application :
* Widely used in oxygen concentration detection in industries, mines, warehousing and environmental protection
Output linearity | linear |
Working temperature | -20℃~50℃ |
Working humidity | 15﹪~90﹪RH |
Working pressure | 1atm±10% |
long-term drift | <2%/Month |
![]() |

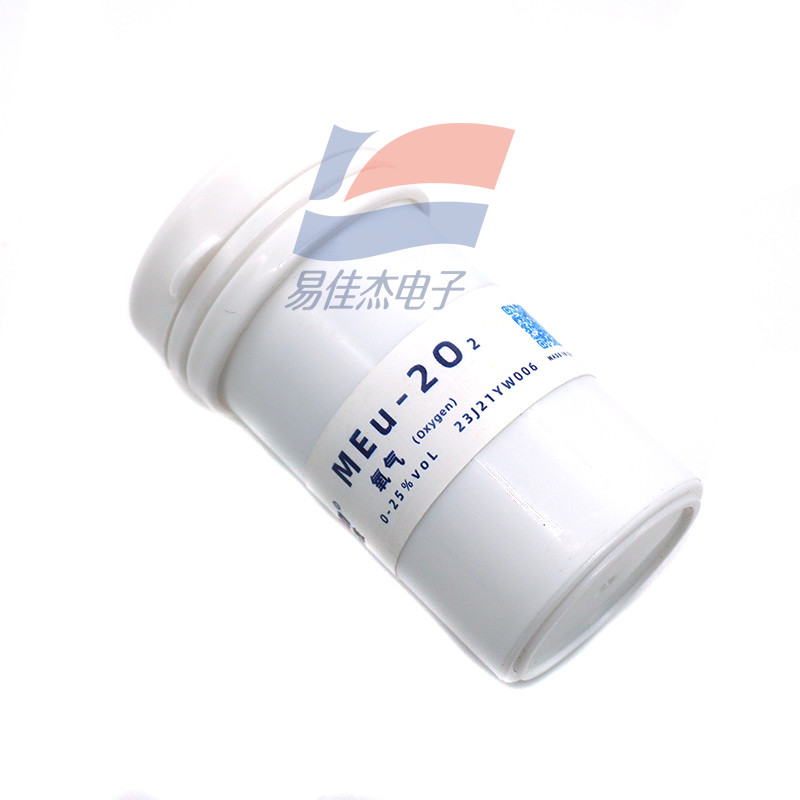

MEu-2O2 Oxygen Sensor Is A Fixed Potential Type Sensor Oxygen Undergoes A Reduction Reaction On The Working Electrode Images |
