Model Number : MP-3B
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 3-5work days
detecting whether ethanol steamy exist in other places : Flat surfaced semiconductor
Flat surfaced semiconductor : Metal cap
Target Gas : Alcohol gas
Detection range : 0~500ppm alcohol
Loop Voltage : ≤24V DC
Heater Voltage : 2.5V±0.1V AC or DC

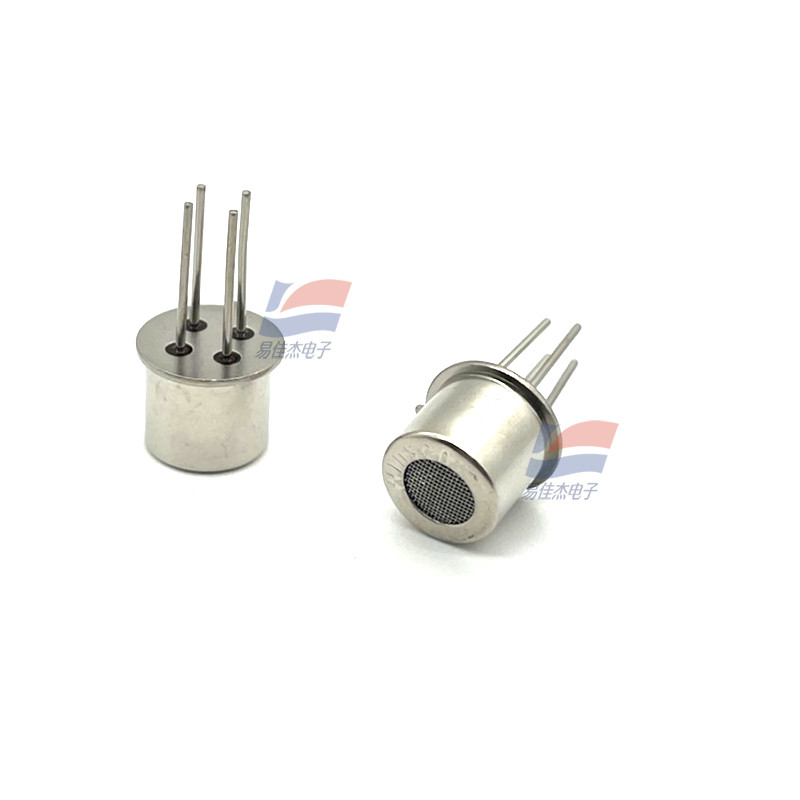

MP-3B Alcohol Gas Sensor Lower Consumption Small Size Fast Response And Resume Highest Sensitivity For Detecting Whether Ethanol Steamy Exist In Other Places
MP-3B model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas (alcohol) exists , The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.
Features:
* Lower consumption
* Small size
* Fast response and resume
* Highest sensitivity
* Excellent stability and long life
* Easy circuit and big signal output
* Excellent selectivity
Application :
It is used for detecting whether the driver and other people who drink alcohol, or detecting whether ethanol steamy exist in other places.
Sensitivity | Ro(in air)/Rs(50ppm C2H5OH)≥3 |
Concentration Slope | ≤0.6(R300ppm/R50ppm C2H5OH) |
Tem. Humidity | 22℃±2℃;55%±5%RH |
Standard test circuit | Vc:2.5V±0.1V |
Preheat time | Not less than 48 hours |
![]() |
MP-3B Alcohol Gas Sensor Lower Consumption Small Size Fast Response And Resume Highest Sensitivity For Detecting Whether Ethanol Steamy Exist In Other Images |
