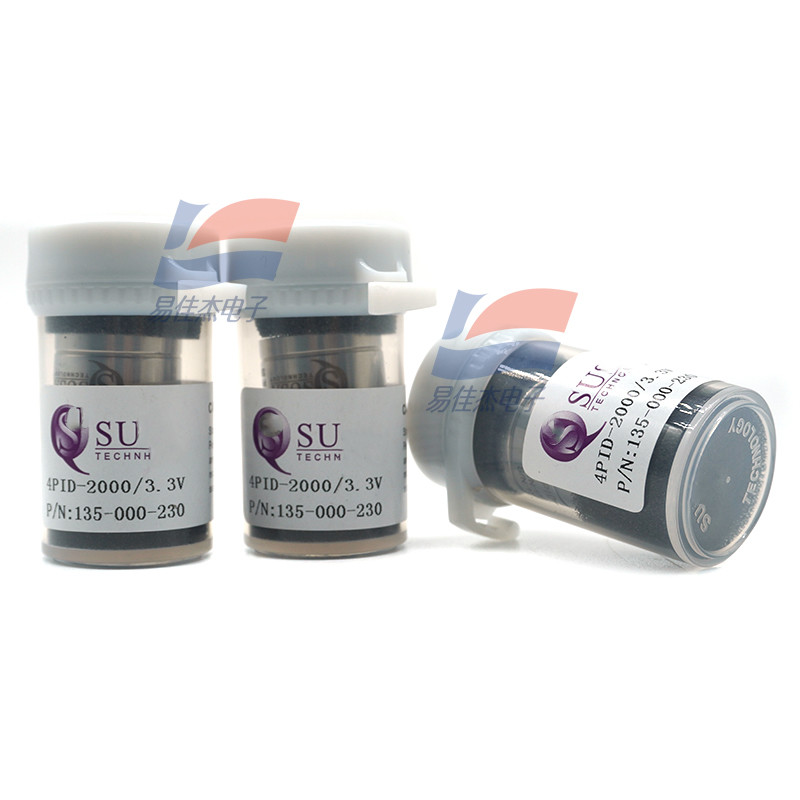

4PID-2000 3.3V Gas Sensor Photoionization Detector For 0-10000ppm Detection

Brand Name : SUSA

Model Number : 4PID-2000 3.3V

Place of Origin : UK

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5workingdays

Packaging Details : Standard Package

MOQ : 1

Price : Negotiable

Supply Ability : 2000pcs/Month

Resolution : 1-2000 Ppb (optional)

Detection range : 0-10000 Ppm (optional)

Operating pressure range : 800~1200 Mbar

Operating temperature range : -40 To 50°C

Repeatability accuracy : < ±2% (calibration Point)

Operating humidity range : 0-99% RH (no Condensation)

Working principle : Photoion Detector

Contact Now

4PID-2000 3.3V Gas Sensor Photoionization Detector For 0-10000ppm Detection

Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs). In generalany compound with an ionization energy (IE) lower than that of the lamp photons can be measured.

Performance Characteristics

Photon energy
 10.6 eV
Measurement range 0 ~ 10,000 ppm isobutylene
Resolution 0.5 ~ 2,000 ppb isobutylene
Response time (T90) < 5 seconds
Baseline shift (20℃) 70 ± 15 mV
Linearity linear from 0.045 ~ 2.5 V

Environmental

Temperature Range
-20℃ ~ +50℃
Pressure Range 1 atm ± 10%
Humidity Range 0 % ~ 99 %RH non-condensing

4PID-2000 3.3V Gas Sensor Photoionization Detector For 0-10000ppm Detection
